S7050 贴片石英晶体

S7050

Ultra-thin thickness 1.0mm.

It is a completely sealed type with a metal case sealed on a ceramic board.

Reflow is possible.

RoHS compliant and lead free.

产品介绍

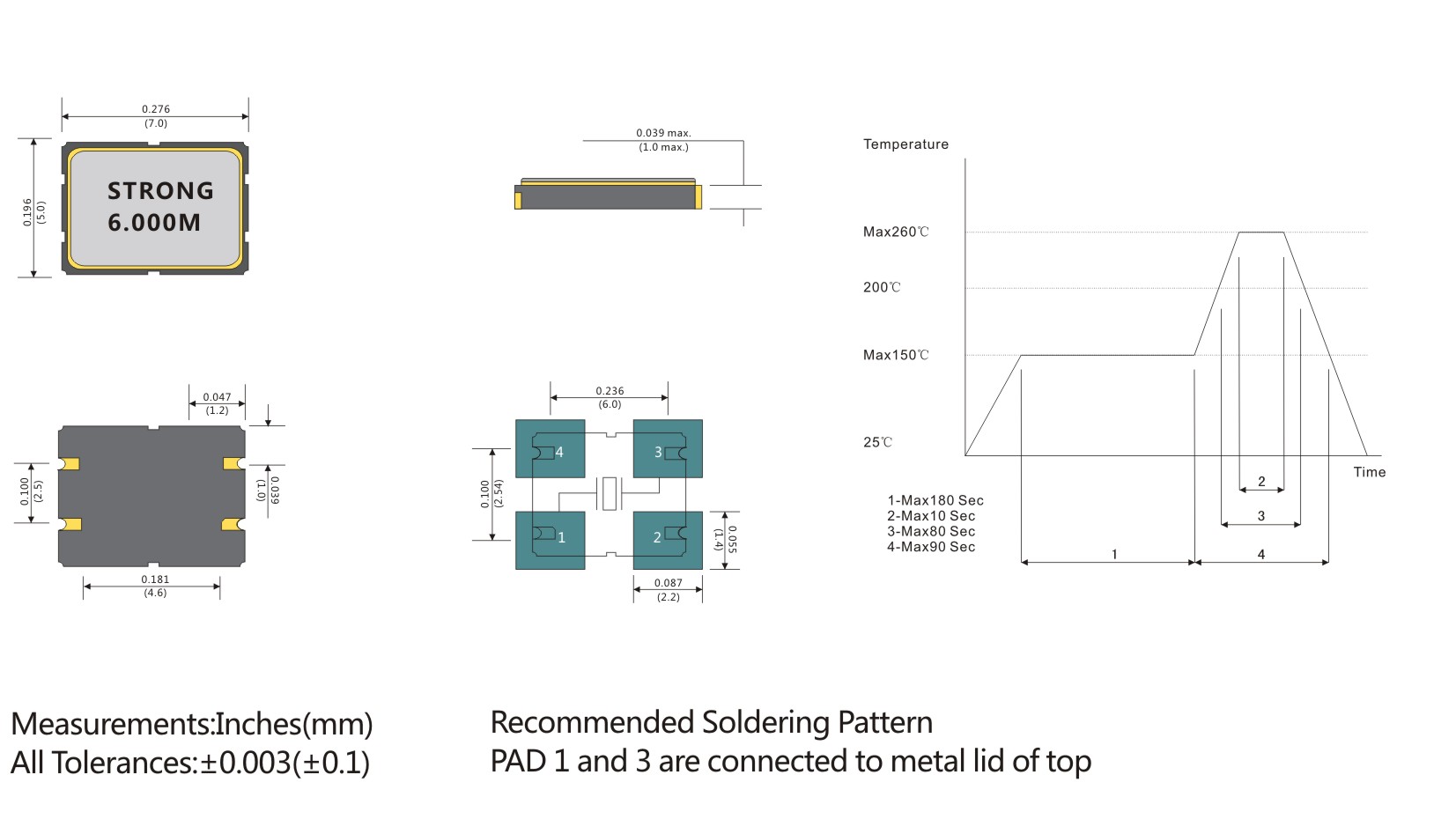

Type SMD 7.0*5.0*1.0mm
Freq. range Fundamental 6.0 ~ 40.0MHz
3rd 40.0 ~ 70.0MHz
Vibration mode AT cut , Fundamental , 3rd
Frequency tolerance（at 25℃） -/+10ppm , -/+30ppm , or specify
Equivalent series resistance See table No.1
Frequency stability over
operating temperature range 		-/+10ppm , -/+30ppm , or specify
Operating temperature range -10 ~ +60 ℃ , or specify
Drive Level 300uW Max.
Shunt capacitance 5.0pF Max.
Load capacitance 16pF, 18pF, 20pF, or specify
Aging -/+2ppm/year , -/+5ppm/year
Min. Packing 1,000pcs/Reel


Equivalent series resistance(ESR) Table No.1
Frequency 6.0~11.9 MHz 12.0~13.9 MHz 14.0~40.0 MHz 40.0~70.0 MHz
Mode Fundamental Fundamental Fundamental 3rd
ESR 100 ohms Max. 60 ohms Max. 40 ohms Max. 50 ohms Max.

>>
