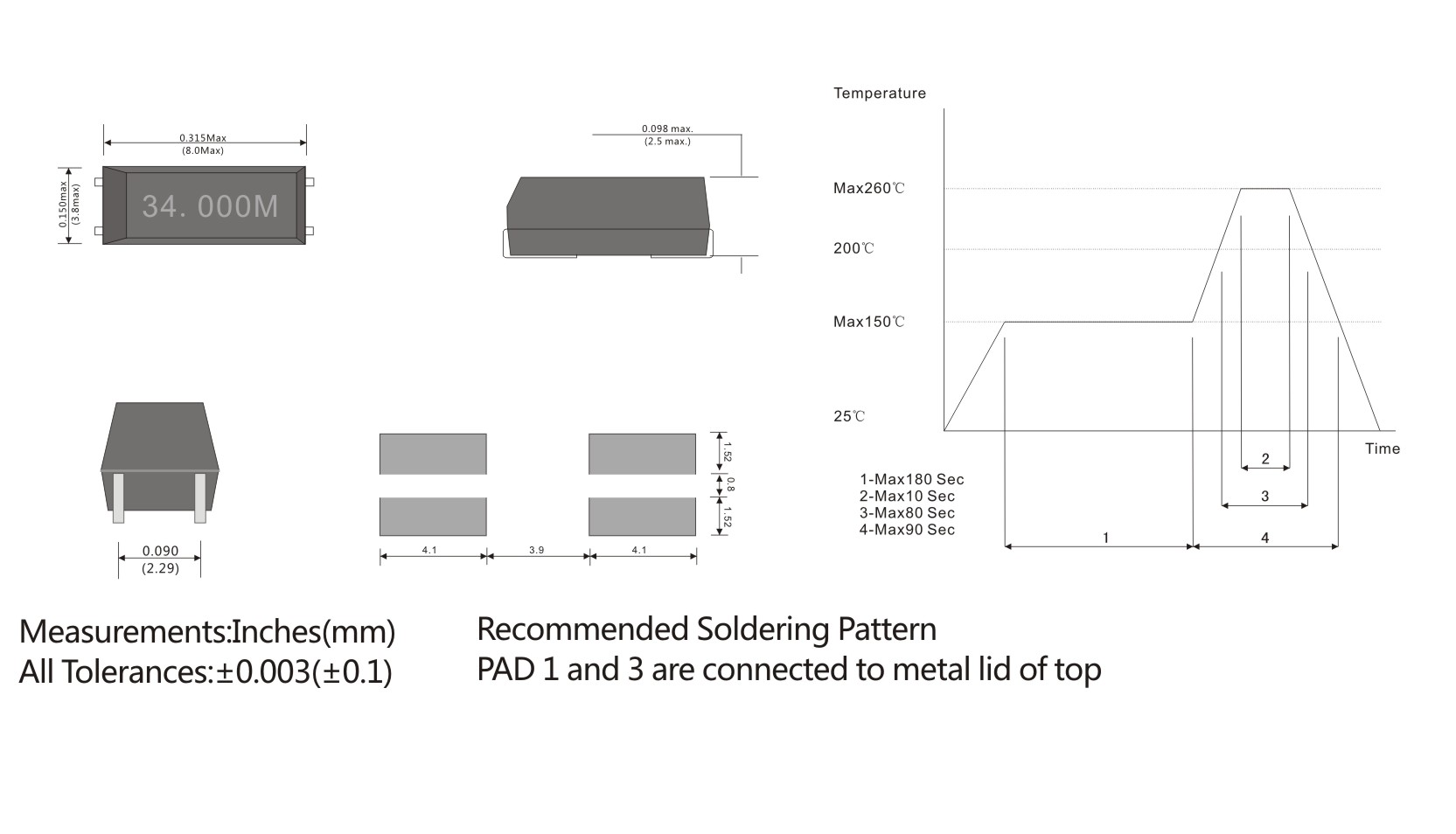

SM406 音叉晶体

Excellent aging characteristics.

Ultra-thin thickness 2.5mm.

Reflow is possible.

RoHS compliant.

产品介绍
Type SM406
Freq. 32.768kHz
Frequency tolerance (at 25℃) -/+20ppm
Operating temperature -40 ~ +85℃
Equivalent series resistance 50K ohms Max.
Temperature characteristics
-Turnover temperature
-Parabolic curvature constant 		25°C-+5℃
-0.045x10 -6 /℃ 2 Max.
Drive level 1.0uW Max.
Shunt capacitance 3.0pF Max.
Load capacitance 6pF , 12.5pF
Insulation resistance 500M ohms//DC 100V
Aging - /+5ppm/year
Min. Packing 3,000pcs/Reel


Freq.Range 3.5-4MHz 4.01-6MHz 6.01-10MHz 10.01-27MHz 20.01-36MHz 36.01-70MHz
Mode Fund Fund Fund Fund Fund 3rd Overtone 3rd Overtone
Series Resistance 150ohmMax 120ohmMax 80ohmMax 50ohmMax 30ohmMax 100ohmMax 100ohmMax

>>
