SS5032 SMD Spread Spectrum

Spread Spectrum Clock Oscillator.

Low EMI.

Ultra-thin thickness 1.3mm.

RoHS compliant and lead free.

产品介绍

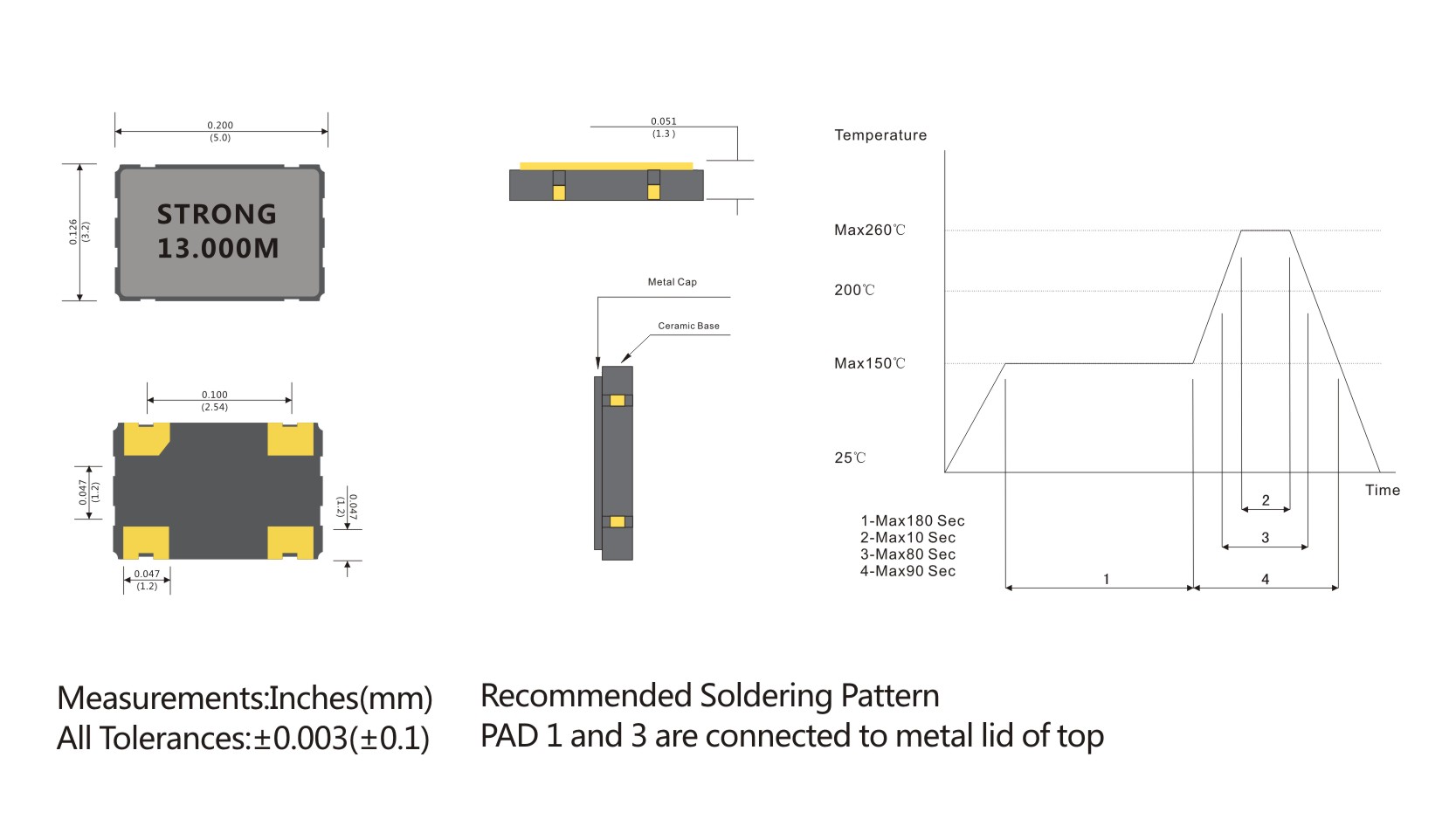

Type SMD Spread Spectrum Clock OSC 5.0*3.2*1.3mm
Freq. range 13.0 ~ 160.0MHz
Supply Voltage 2.5V ~ 3.3V
Frequency Stability (Parameter excludes modulation) ±20ppm , ±100ppm
Operating Temperature Range 0~+70℃ (-40~+85℃ is available)
Storage Temperature Range -55~+125℃
Current 40mA Max.
Load 15pF
Output Level CMOS
Output Symmetry 40~60% (at 50%VDD)
Rise Time/Fall Time 10nS Max.
Min. Packing 1,000pcs/Reel


Spread Spectrum Specifications
Spread Type C1 C2 C3 C4
Center Spread ±0.125~±0.5% ±0.625~±1.0% ±1.125~±1.5% ±1.625~±2.0%


Spread Type D1 D2 D3 D4
Down Spread -0.25~-1.0% -1.25~-2.0% -2.25~-3.0% -3.25~-4.0%



>>
