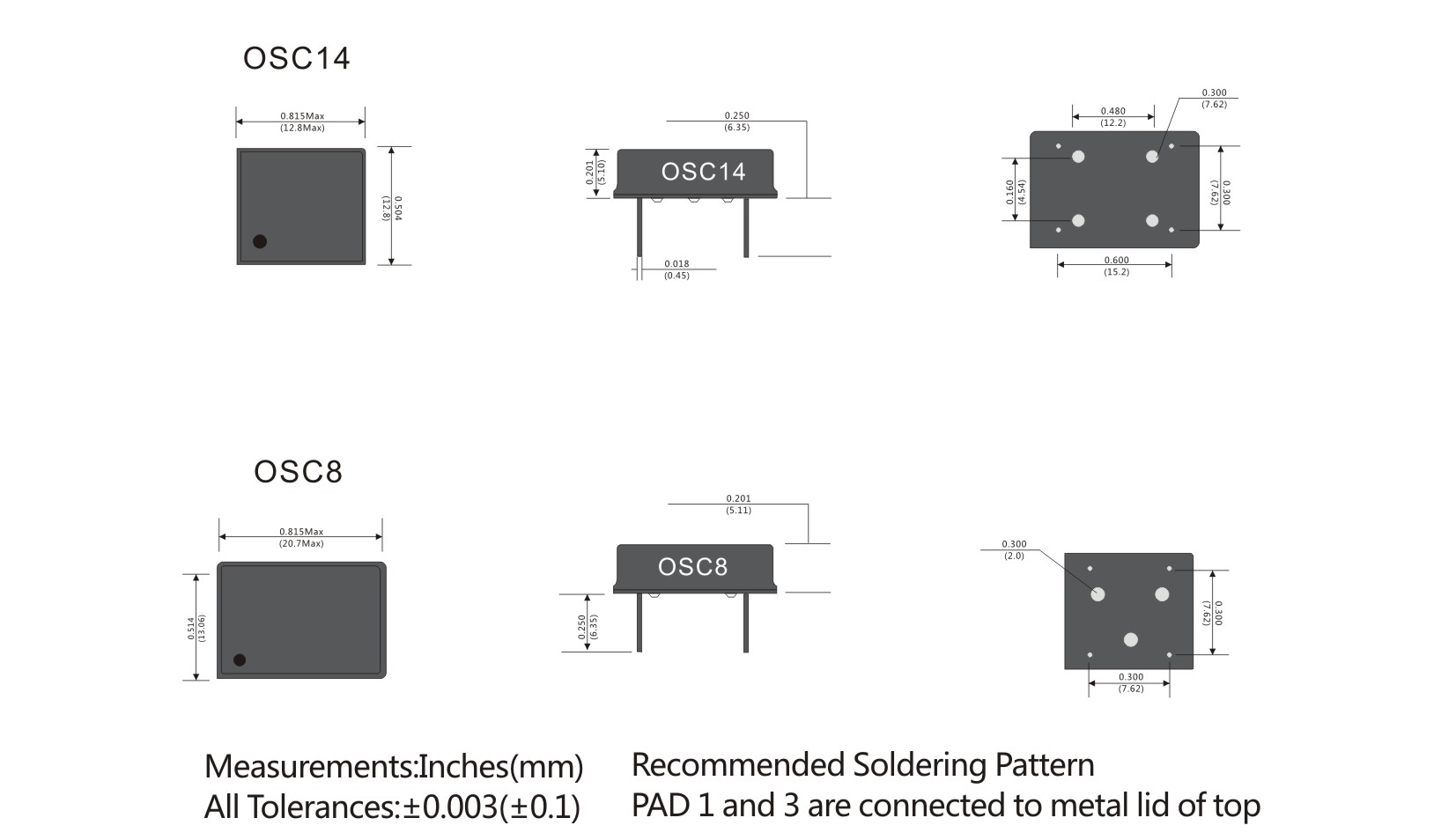

OSC8/OSC14 Crystal Oscillator
Metal Can Full DIP
Thru-Hole Package
产品介绍
|
Type
|
OSC8/OSC14
|
|
Freq. range
|
1.0 ~ 40.0MHz
|
41.0 ~ 200.0MHz
|
|
Supply Voltage
|
1.8V ~ 5.0V
|
|
Frequency Stability
|
±10ppm ~ ±100ppm
|
±25ppm ~ ±100ppm
|
|
Operating Temperature Range
|
0~+70℃ (-40~+85℃ is available)
|
|
Storage Temperature Range
|
-55~+125℃
|
|
Current
|
40mA Max.(1.8~3.3V) , 80mA Max.(5.0V)
|
|
Load
|
15pF
|
|
Output Level
|
CMOS
|
|
Output Symmetry
|
45~55 (at 50%VDD)
|
|
Rise Time/Fall Time
|
10nS Max.
|
|
Min. Packing
|
1,000pcs/Reel
|
