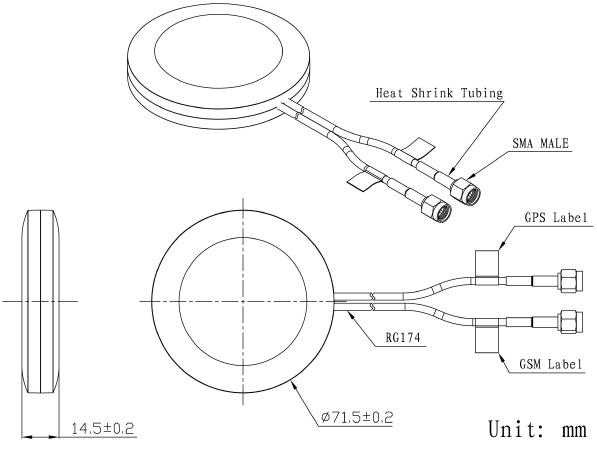

DIMENSIONS
SPECIFICATIONS
Item | Specifications | ||
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±lMHz |
Band Width | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 5dBic (Zenith) | ||
V.S.W.R | <1.5 | ||
Impendance | 50Q | ||
Axial Ratio | 3dB (max) | ||
LNA | Gain | 28±2dBi | |
Noise Figure | <1.5 | ||
Ex-band Attenuation | 12dB@CF+5 0MHz/16dB@CF-50MHz | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 2.2~5VDC | ||
Current Consumption | 5〜15mA | ||
GSM /3GAntenna | Frequency Range | 824~960MHz/1710~2170MHz | |
V.S.W.R (min) | <2.5 | ||
Polarization | Linear | ||
Gain | 2dBi | ||
Impendance | 50Q | ||
Mechanical | Cable | RG174 | |
Connector | SMA/MCX/FAKRA or others | ||
Radome Material | ABS | ||
Mounting Method | Magnet/Adhesive/Screw | ||
Environmental | Operating | -40H85°C | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP66 | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally | ROHS Compliant |
Radiation Pattern

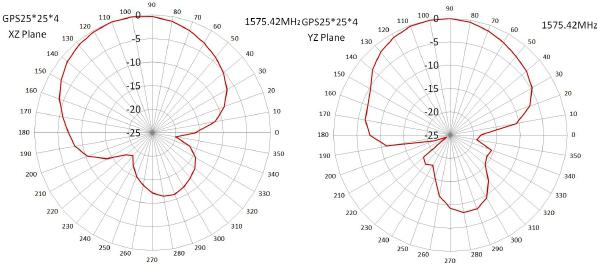

GPS Antenna

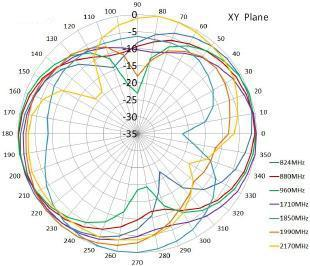

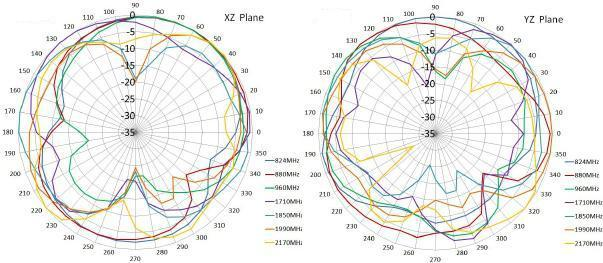

GSM/3G Antenna
